The V-mount Helix 150 Mini 147Wh Dual-Voltage Battery is a professional battery designed for modern production workflows involving a wide range of equipment. The compact design means the battery takes up less space than previous-generation models to better fit gimbal stabilizers and other rigs where space is at a premium. Though the design is less space-consuming, the Helix 150 Mini provides the same 147Wh capacity as its predecessors. To support various equipment types from small accessories to larger cinema cameras and lights, the Helix 150 Mini supports a continuous draw of 9.9A at 14.8V and simultaneous dual-voltage output with a maximum load of 6A at 28V and 12A at 14V.

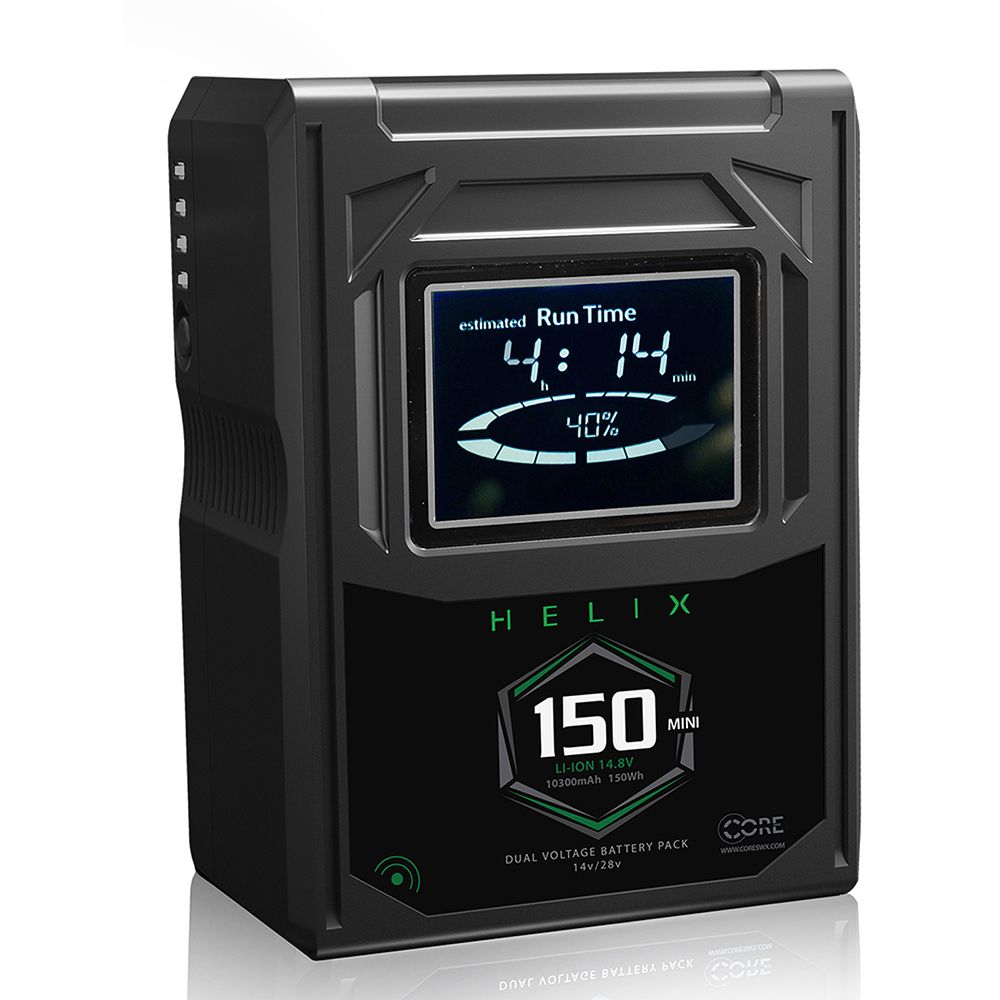

The Helix 150 Mini features a 12V D-Tap output that can be used to power a camera, light source, monitor, recorder, or other power-hungry equipment. The LCD battery status display screen on the rear of the battery is backlit with a cool white illumination, and updates every few seconds to accurately reflect up-to-the-moment statistics including the runtime. The battery also includes RFID which allows you to connect an RFID reader app to monitor battery information remotely. Another handy feature is the ability to charge or discharge to 30% for safe storage or air transport using Voltbridge technology.

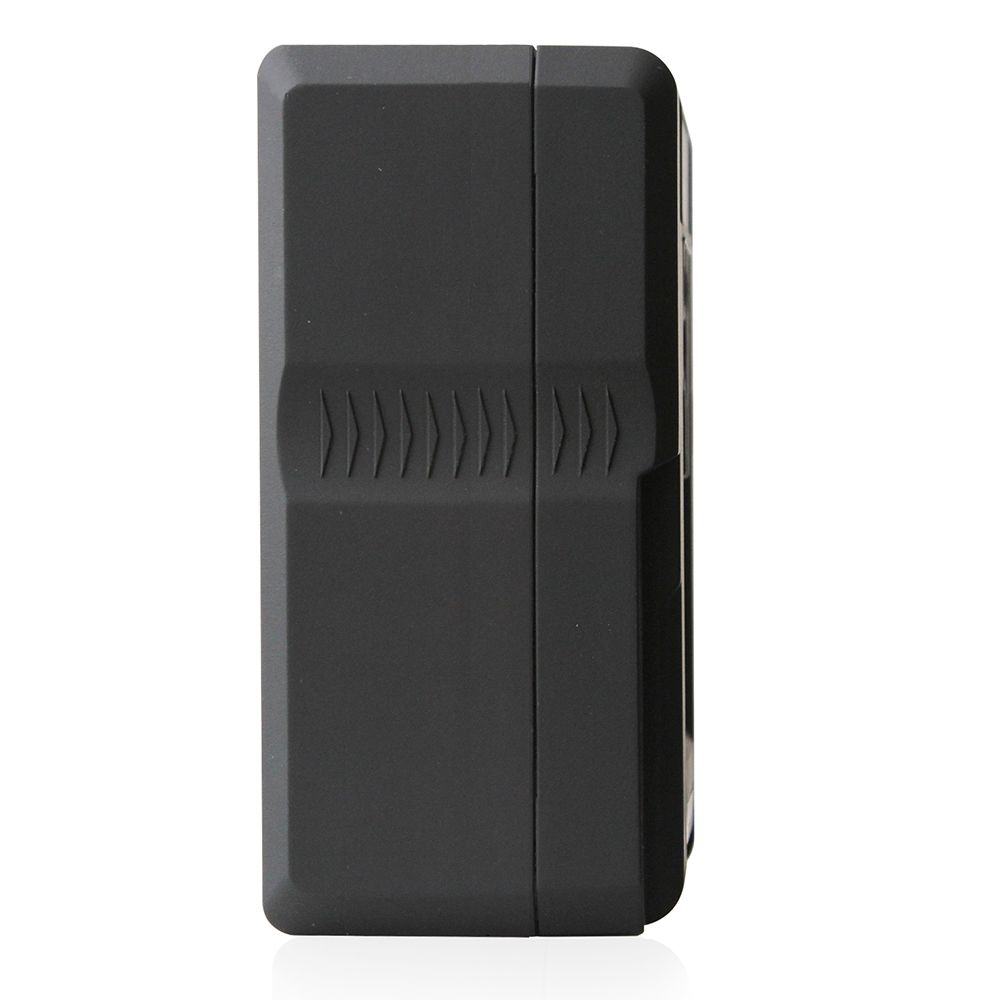

The battery itself is housed in Core SWX's classic overmolded casing with a rubberized finish that is resistant to impact and is easily grippable.
