Description

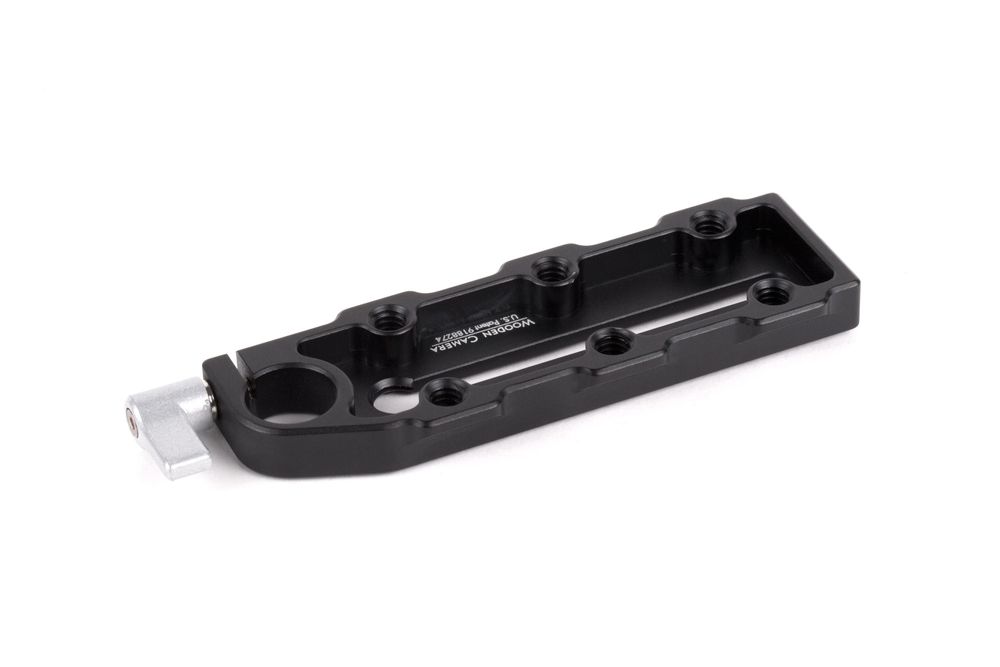

Unified Baseplate Camera Dovetail (Sony FS7, FS7mkII, Canon C100mkII, C300mkII, C100, C300, C500) is a plate which can attach to the base of those cameras and when combined with the Unified Baseplate Core Unit (No Dovetails), provides 15mm lightweight rods at the correct lens height. The slotted design allows multiple included 1/4-20 and 3/8-16 screws to be attached to the camera bottom up to 70mm apart centre to centre and non-slip, rubber surface prevents the camera from twisting.

The bottom portion of this Unified Camera Dovetail features an ARCA Swiss standard dovetail shape, our patented serrated dovetail design, and 1/4-20 threaded holes for attaching to gimbal mounts and other devices. Additionally the 15mm vertical rod opening can be combined with our Unified Lens Adapter Support Kit components to attach adapters like Wooden Camera, Metabones, etc. securely onto a camera body.

Included:

• (2) 1/4-20 low profile screws
• (2) 3/8-16 low profile screws

Specifications:

• Weight: 90.7 g (0.2 lbs)
• Dimensions: 50.8 x 127 x 25.4 mm
