Wooden Camera - Mini Touch & Go System (80mm Oconnor Euro, Sacthler 16, Ronford Baker Mini-RBQ Compatible)
Product Features:
Configuration Options:
Wooden Camera - Mini Touch & Go System (80mm Oconnor Euro, Sacthler 16, Ronford Baker Mini-RBQ Compatible)
Description

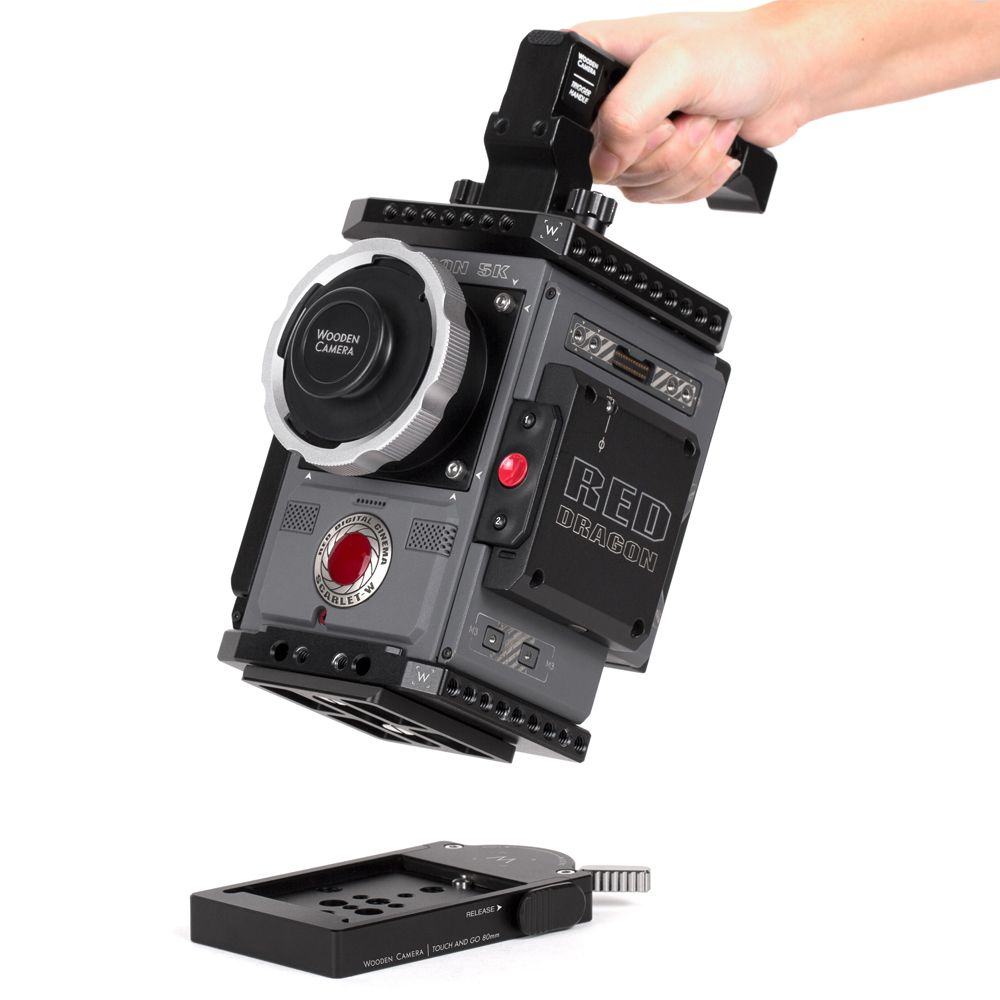

Mini Touch and Go System is an industry standard, quick release system compatible with OConnor 80mm, Sachtler, and Ronford Baker. Our version is lighter than other systems due to the recess designs on the receiver and plate. Once the plate is attached to the camera by included 1/4-20 and 3/8-16 screws, simply drop it into the base and the plate will snap into locked mode. Push the lever further to clamp the Quick Release Plate in place. To remove, pull the lever and push down on side release button at the same time.
Touch and Go System is compatible with:
- 80mm O'Connor Euro
- Sachtler 16
- Ronford Baker Mini-RBQ
Complete System:
Weight: 305g (.67 lbs)
Dimensions: 139.7 x 76.2 x 16 mm (5.5 x 3 x .63 in)

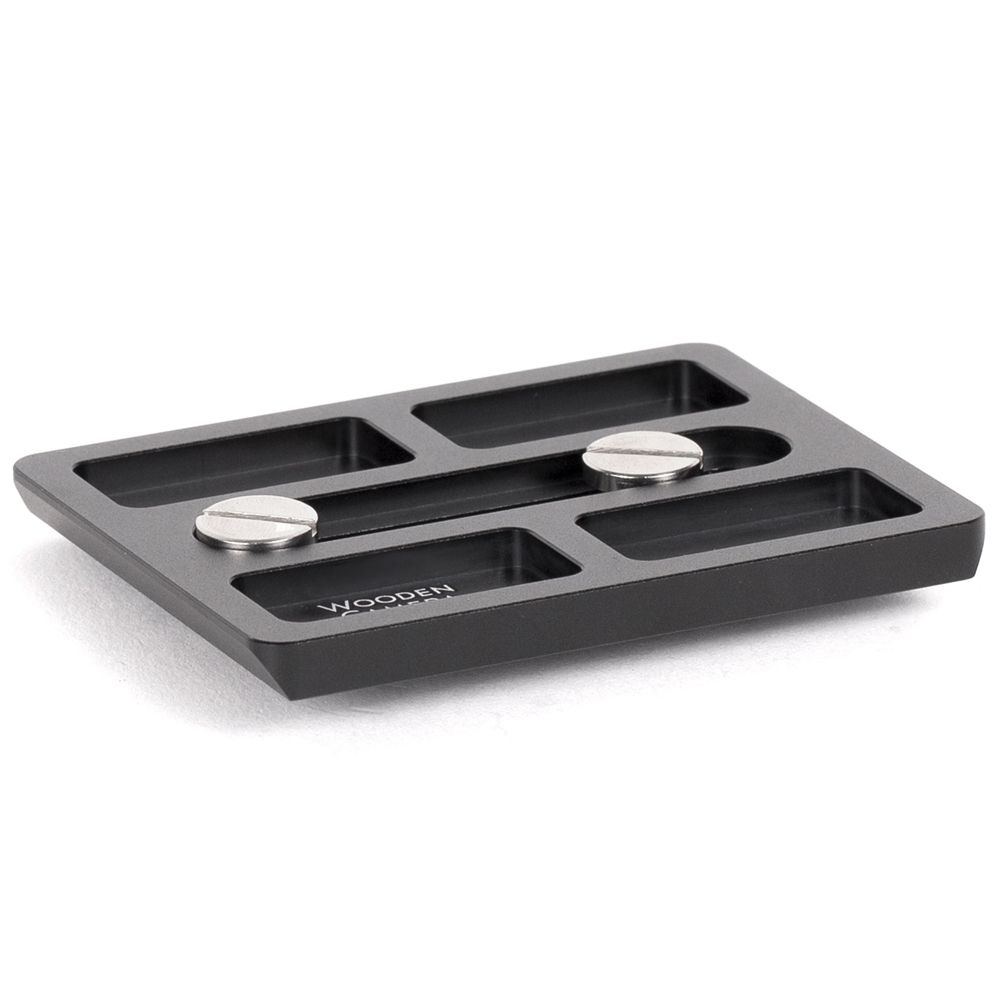

Touch and Go Plate Only:
Weight: 53g (0.12 lbs)
Dimensions: 79.5 x 63.5 x 6.35 mm (3.13 x 2.5 x .25 in)
Touch and Go Receiver Only:
Weight: 252g (0.56 lbs)
Dimensions: 139.7 x 76.2 x 16 mm
