Wooden Camera - - Panasonic Leica L Mount ARRI LPL Mount Adapter
Product Features:
Wooden Camera - - Panasonic Leica L Mount ARRI LPL Mount Adapter
Description

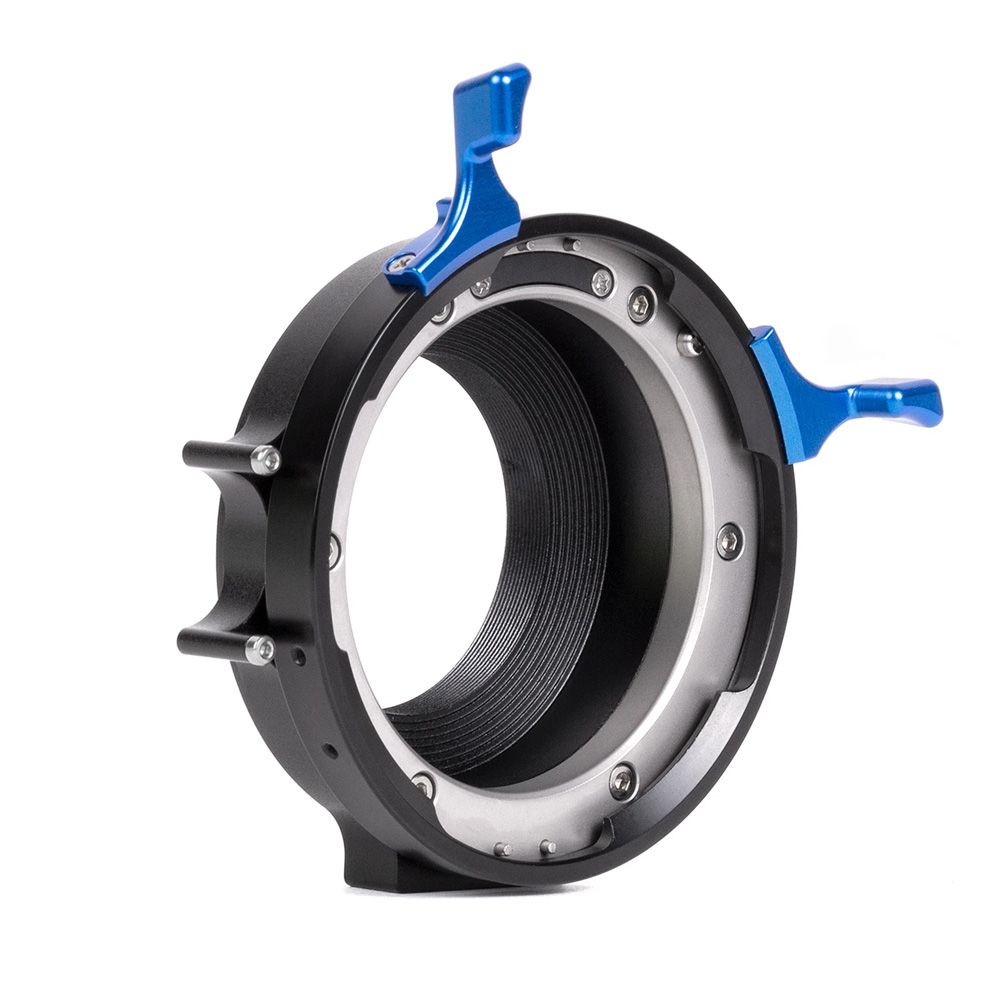

Panasonic Leica L Mount to ARRI LPL Mount Adapter allows ARRI LPL Signature Prime Lenses to be used with Panasonic or Leica L Mount cameras. Other LPL lenses like Leica Thalia LPL are also compatible.

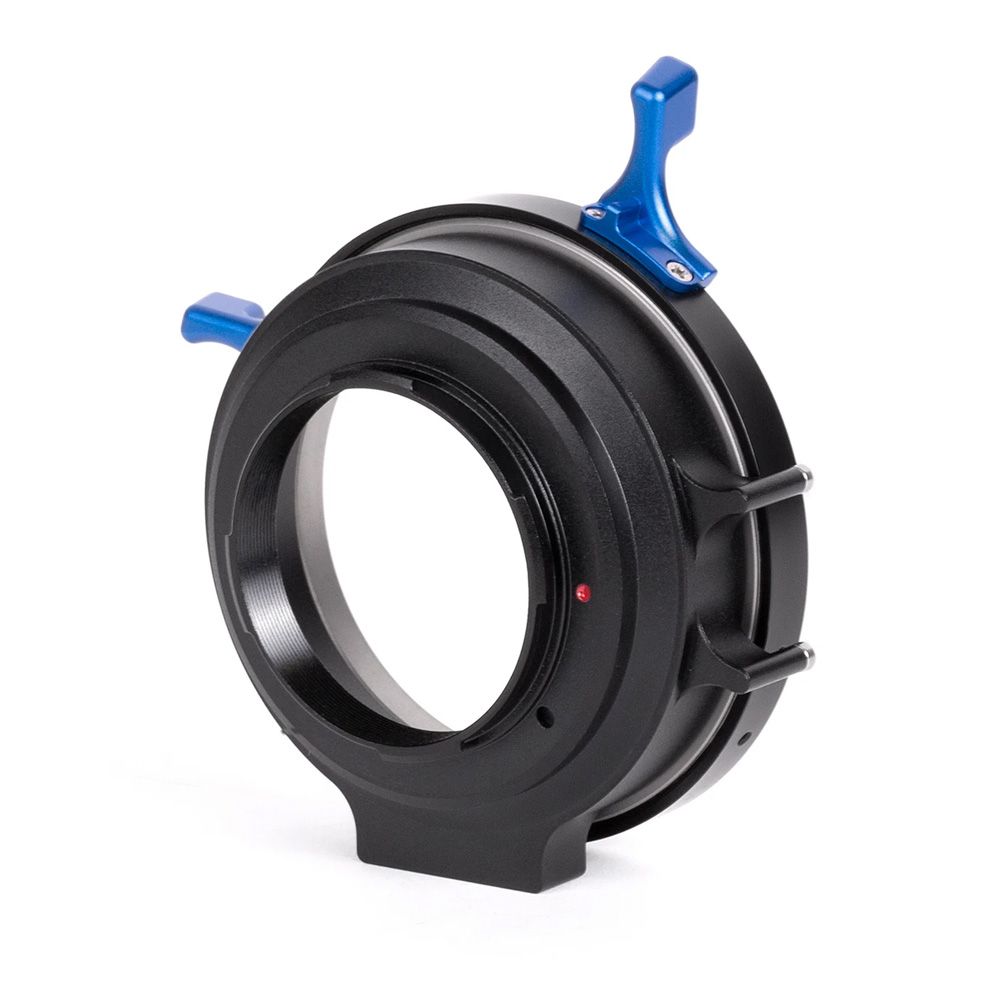

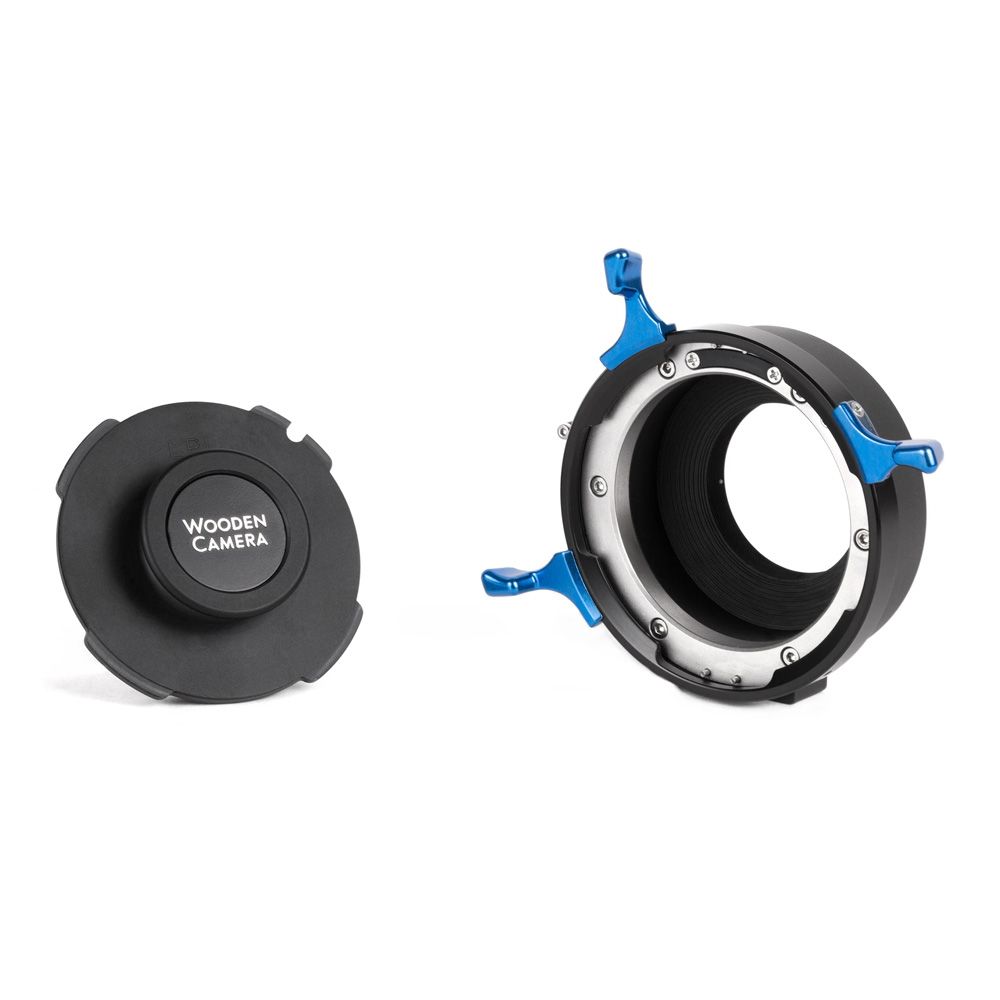

The 1/4-20 threaded hole on the bottom reduces strain on the camera mount by attaching to a tripod or the vertical lens support hole on the Unified DSLR Cage. LPL Cap included to prevent dust from entering sensor area when lens is not attached. A third tab is included for use with mount when not installed in a DSLR cage.

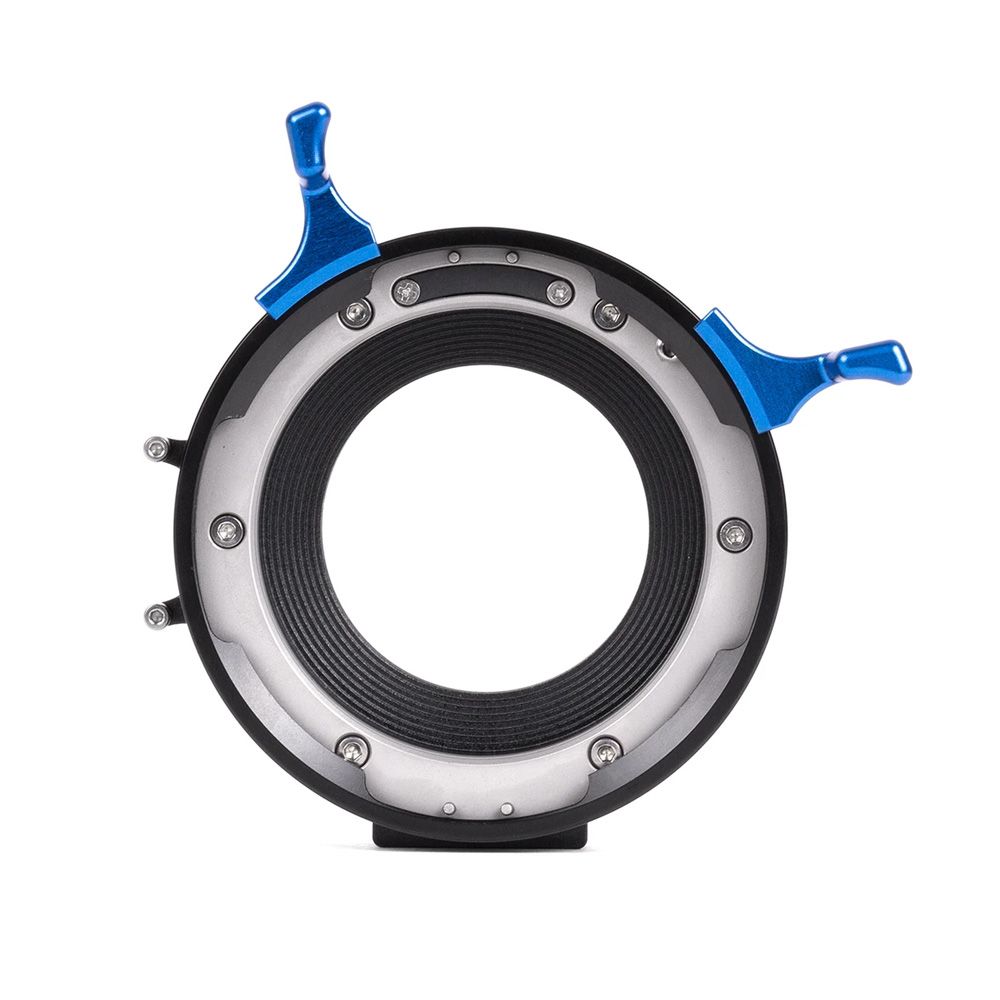

In our factory, we set the flange focus using collimation tools. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity.
ARRI's LPL to PL Adapter is also compatible, allowing easy change from standard PL lenses to LPL lenses. LPL Mount is passive and does not communicate lens data to the camera.
Shim Set (stackable to achieve necessary thickness)
Silver .0127mm (0.0005")
Amber .0254mm (0.001")
Purple .0381mm (0.0015")
Red .0508mm (0.002")
Green .0762mm (0.003")
Tan .1016mm (0.004")
Blue .127mm (0.005")
Specifications:
Weight: 216g (0.5 lbs)
Dimensions: 81.8 x 81.8 x 46.5 mm (3.2 x 3.2 x 1.8 in)
