Description

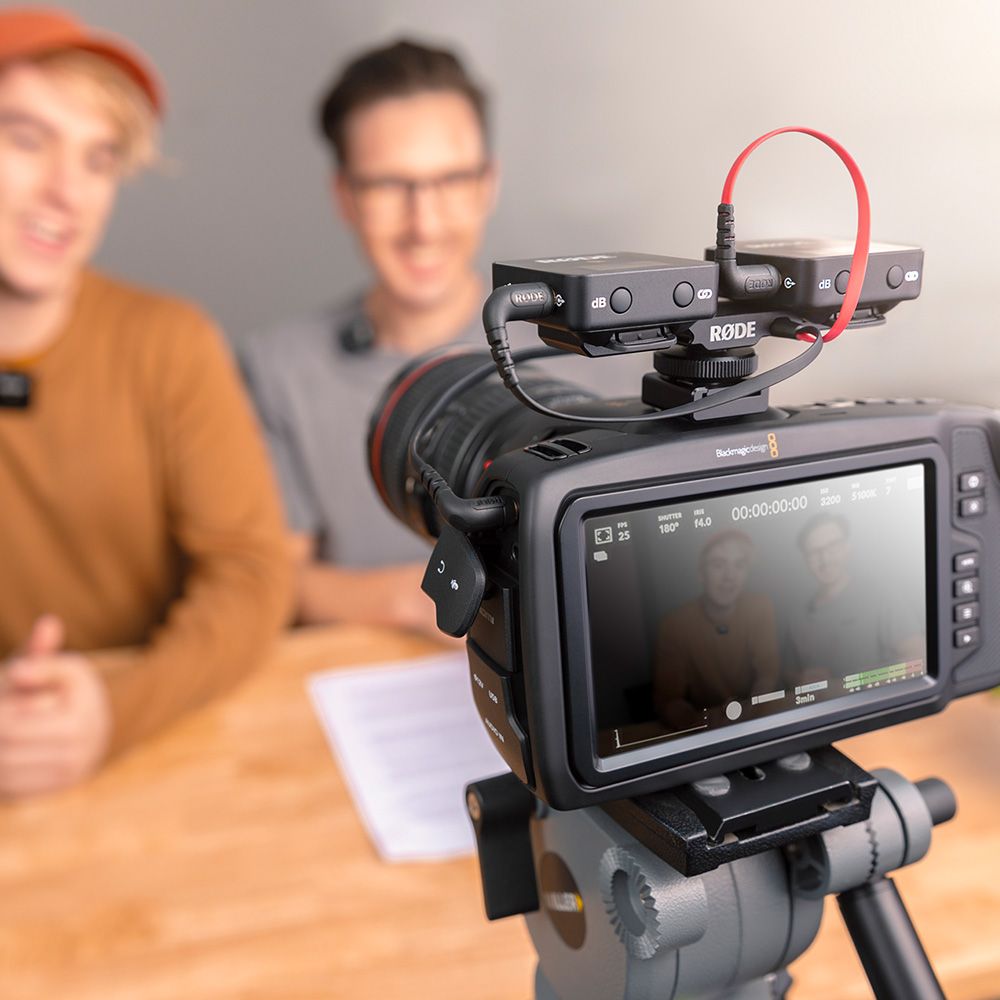

The SC11 is a TRS splitter cable for connecting two mono outputs to a single stereo input. It is particularly suitable for connecting two microphones to a single DSLR-style camera, for example dual Wireless GO receivers, or a wireless receiver and a VideoMic. The SC11 is 275mm in length and is compatible with the cable management slots in the RØDE SM7-R and DCS-1 mounts. The output segment has in-built memory wire for neat cable positioning around your camera and the input segment is split into two – the black end records to the left channel, the red end records to the right.

SC11 SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS
Output Connection Dual TRS 3.5mm
Inputs TRS 3.5mm
MECHANICAL SPECIFICATIONS
Weight (g) 12g
Packed Weight (g) 26g
Dimensions (L x W x H, mm) Overall: 275.5mm (L)

Memory Cable: 152.5mm (L) x 3.75mm (W)

Flex cable: 97.45mm (L) x 3.30mm (W)
Package Dimensions (L x W x H, mm) 76mm x 26.5mm x 54.5mm

Compatible RØDE Products

• DCS-1
• Wireless GO
• VideoMic NTG
• VideoMic Pro+
• VideoMic GO
• VideoMicro
