Description

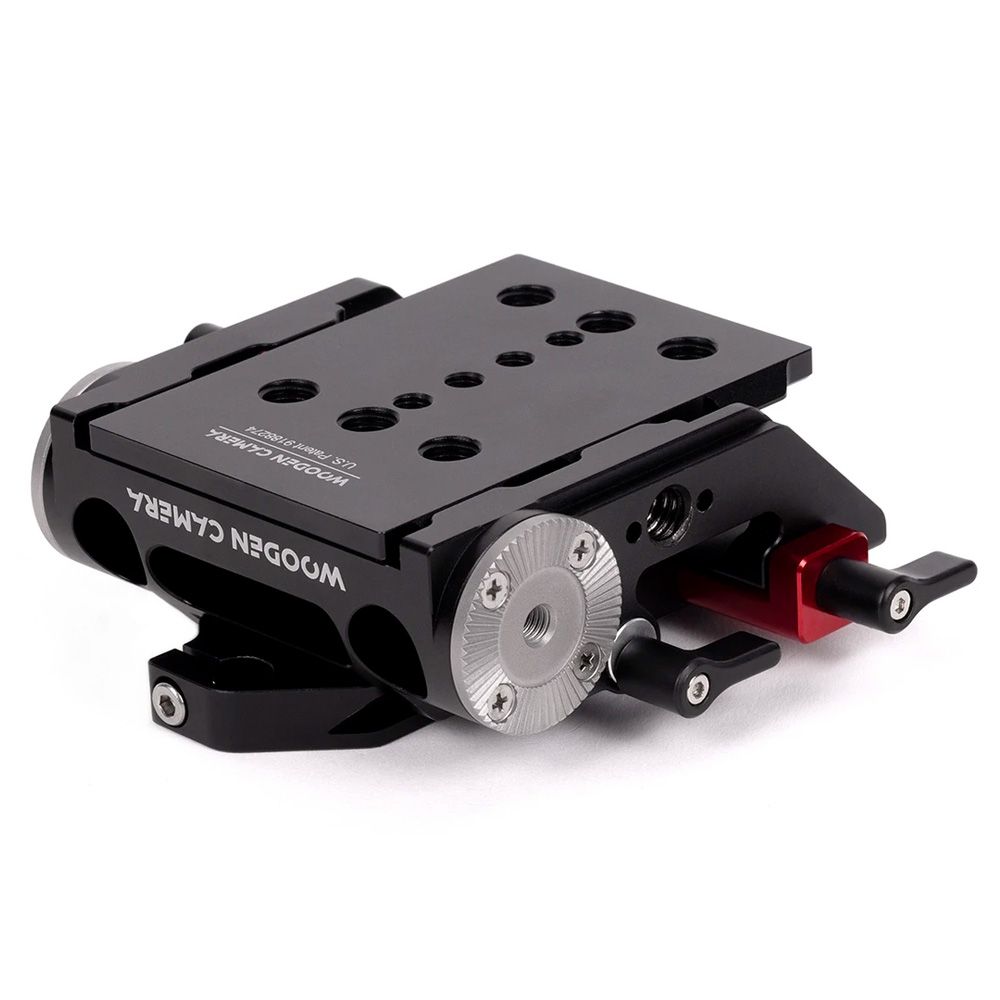

Quick release baseplate that provides lightweight 15mm rod support at the correct lens height. 15mm rods pass through front to back and have two locking thumb screws per side. ARRI standard M6 rosettes are located on both sides along with 1/4-20 threaded holes. (1) 3/8-16 ARRI accessory mount also available on camera-right side.

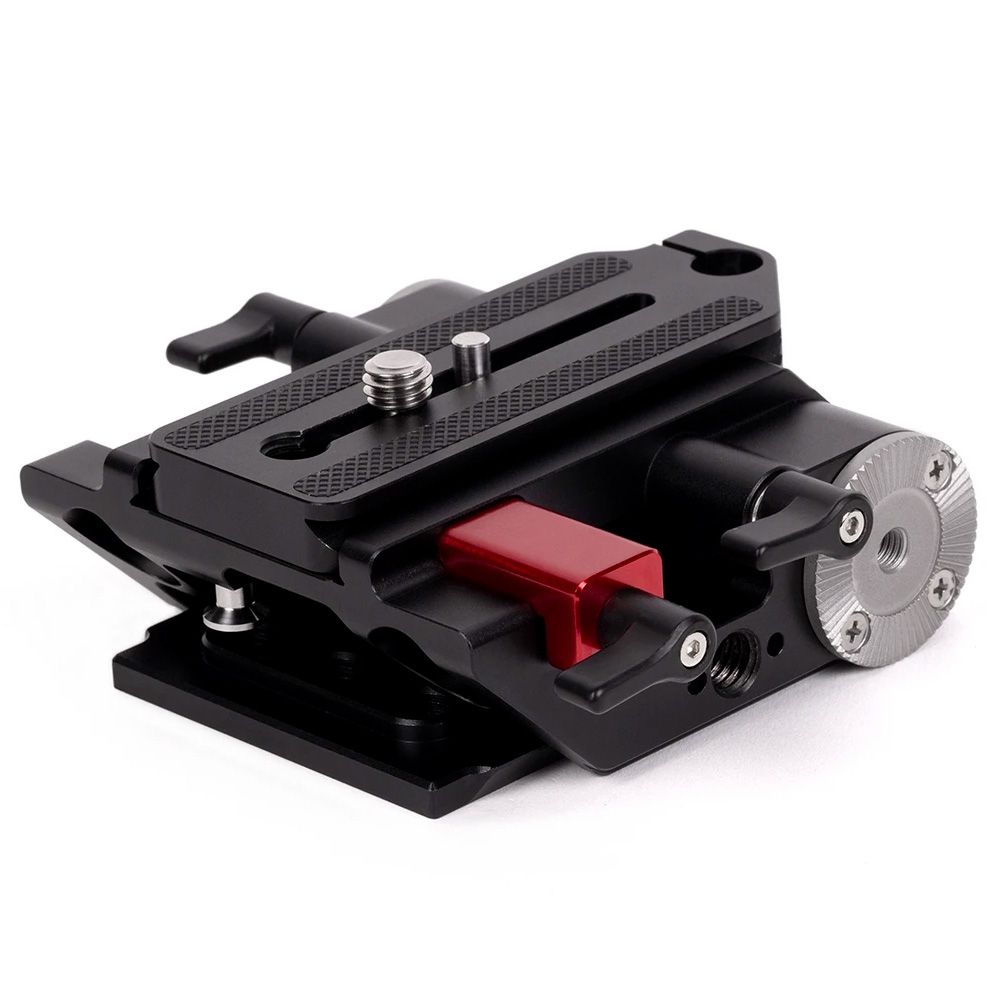

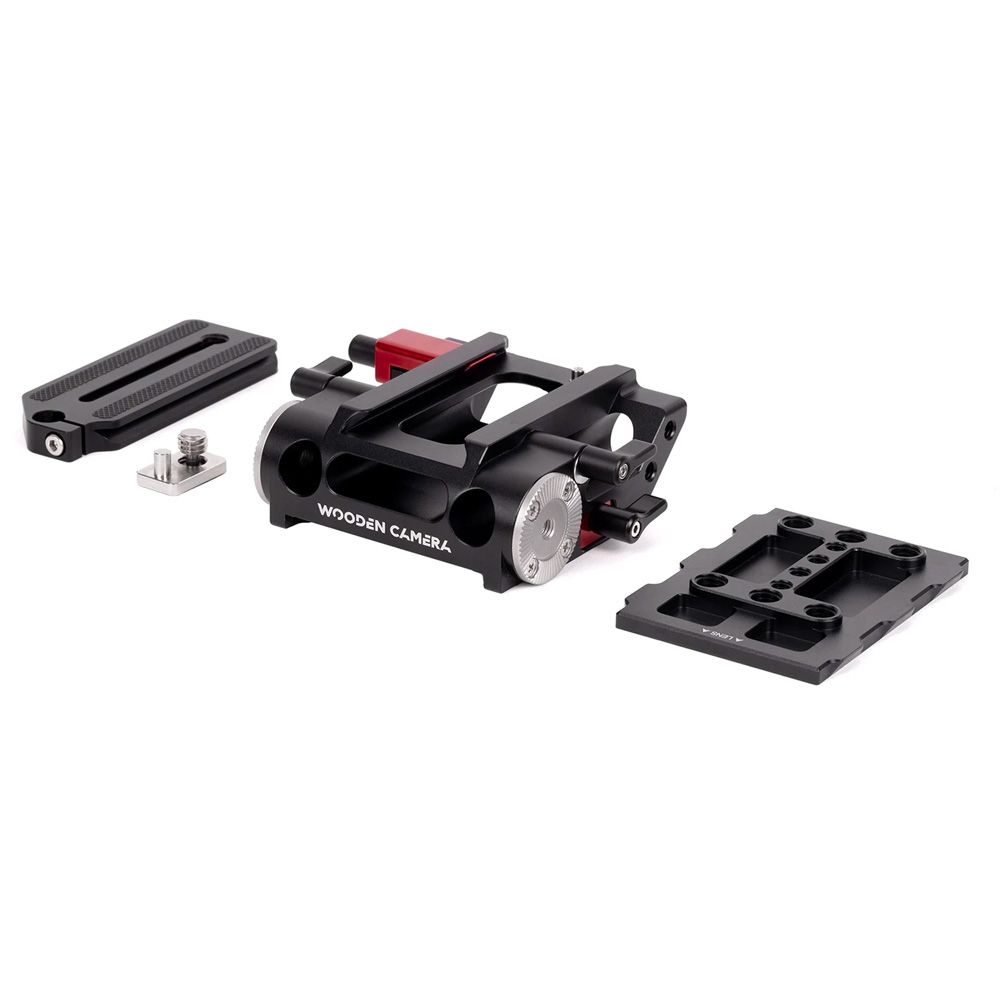

Baseplate features upper ARCA Swiss standard dovetail with ⅜”-16 screw and locating pin for attaching to the bottom of the camera. Upper ARCA Swiss standard dovetail slides into the LW 15mm Baseplate core, and includes a push-pull safety release pin for removal. Also features vertical lens support post system.

Lower dovetail slot is ARRI standard for attaching to compatible ARRI dovetails or the included Quick Dovetail. With Quick Dovetail attached, the baseplate and camera combination can be combined with an ARRI standard bridge plate like Quick Release Bridgeplate (19mm) or Quick Release Bridgeplate (15mm Studio).

Features:
- Multiple ¼”-20 screw holes
- 2x ARRI standard M6 rosette
- 1x ⅜”-16 ARRI accessory mount

Specifications:
Weight: 400g (0.8lbs)
Dimensions: 90 x 120 x 40mm (3.54 x 4.72 x 1.5 in)
